BizTalk Dynamic Send Ports For Rest Services

Dynamic send ports are used to send the BizTalk messages dynamically from orchestration to destination systems based on some conditions.

There are two types of dynamic send ports.

  • One-way dynamic Send Port:

Using one-way dynamic send port, we just send the messages to destination systems, but don’t expect the response back.

We need to create a logical send port in orchestration with port direction as Dynamic.


In the expression shape, we need to specify the destination location and Transport Type properties.



In Expression_1, you need to write below code

Port_Dynamic(Microsoft.XLANGs.BaseTypes.Address)=@”file://D:\Test1″;

Port_Dynamic(Microsoft.XLANGs.BaseTypes.TransportType)=”FILE”;

//Port-Dynamic is the Dynamic send port name.

//In Expression_2, you need to write below code

Port_Dynamic(Microsoft.XLANGs.BaseTypes.Address)=@”file://D:\Test2″;

Port_Dynamic(Microsoft.XLANGs.BaseTypes.TransportType)=”FILE”;

  • Two Way Dynamic Send Port

Two-way dynamic sendports are used for request and response messages.

We need to create logical dynamic sendport with port direction as dynamic.


We need to construct the message with all request and response message properties of Rest endpoint as below

In the message assignment shape we need to construct the message with below properties.

RequestForRouting = Request;

//Request is the input message type of your orchestration receive shape. RequestForRouting is the message which we construct in this message assignment shape.

RequestForRouting(BTS.RouteDirectToTP)=false;

headerhttp = Request(WCF.InboundHttpHeaders);//If you have any http headers

RequestForRouting(FILE.ReceivedFileName) = headerhttp;

RequestForRouting(WCF.HttpMethodAndUrl) = “POST” //For POST Operation

RequestForRouting(WCF.HttpMethodAndUrl)=”<BtsHttpUrlMapping><Operation Name=” Method=’GET’ Url=’/RestServiceURL’ /></BtsHttpUrlMapping>”; // For Get Operation

RequestForRouting(BTS.SendPipelineConfig)=”<Root xmlns:xsd=’http://www.w3.org/2001/XMLSchema&#8217; xmlns:xsi=’http://www.w3.org/2001/XMLSchema-instance’><Stages><Stage CategoryId=’9d0e4108-4cce-4536-83fa-4a5040674ad6′><Components><Component Name=’Microsoft.BizTalk.Component.JsonEncoder’><Properties><RemoveOuterEnvelope vt=’11’>-1</RemoveOuterEnvelope></Properties></Component></Components></Stage></Stages></Root>”;

RequestForRouting(BTS.SendPipelineResponseConfig) = “<Root xmlns:xsd=’http://www.w3.org/2001/XMLSchema&#8217; xmlns:xsi=’http://www.w3.org/2001/XMLSchema-instance’><Stages><Stage CategoryId=’9d0e4103-4cce-4536-83fa-4a5040674ad6′><Components><Component Name=’Microsoft.BizTalk.Component.JsonDecoder’><Properties><RootNode vt=’8′>” + RootNodeName + “</RootNode><RootNodeNamespace vt=’8′>” + Namespace + “</RootNodeNamespace></Properties></Component><Component Name=’Microsoft.BizTalk.Component.XmlDasmComp’><Properties><AllowUnrecognizedMessage vt=’11’>-1</AllowUnrecognizedMessage></Properties></Component></Components></Stage></Stages></Root>”;

RequestForRouting(WCF.VariablePropertyMapping)=String.Empty;

//For POST Operation

RequestForRouting(WCF.VariablePropertyMapping)=

“<BtsVariablePropertyMapping xmlns:xsi=’http://www.w3.org/2001/XMLSchema-instance&#8217; xmlns:xsd=’http://www.w3.org/2001/XMLSchema’><Variable Name=NameoftheVariable PropertyName=’NameOftheProperty‘ PropertyNamespace=’NameSpace‘/></BtsVariablePropertyMapping>”;

//For Get Operation

RequestForRouting(WCF.SuppressMessageBodyForHttpVerbs)=String.Empty;

//For POST Operation

RequestForRouting(WCF.SuppressMessageBodyForHttpVerbs)=”GET”;

//For Get Operation

RequestForRouting(BTS.RetryCount) = 0;

RequestForRouting(WCF.MaxReceivedMessageSize)=2147483647;

RequestForRouting(WCF.OpenTimeout)=”00:01:00″;

RequestForRouting(WCF.CloseTimeout)=”00:01:00″;

RequestForRouting(WCF.SendTimeout)= “00:01:00”;

RequestForRouting(WCF.EndpointBehaviorConfiguration)=”<behavior name=’EndpointBehavior’><AddHttpHeader HeaderFields=’Field1,Field2,Content-Type: application/json’/></behavior>”;

// If you have http headers

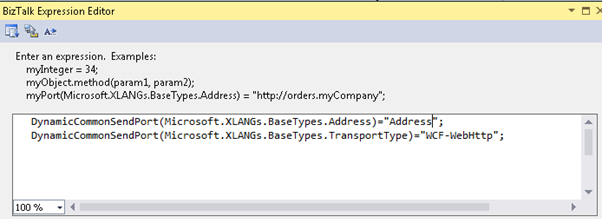

In the expression shape, we need to specify Address and TransportType.


DynamicCommonSendPort(Microsoft.XLANGs.BaseTypes.Address)=”Rest Endpoint URL Name”;

DynamicCommonSendPort(Microsoft.XLANGs.BaseTypes.TransportType)=”WCF-WebHttp”;

Good Luck…
